Do-It-Yourself Irrigation Inc.
Do-It-Yourself Irrigation Inc is your best source for Lawn Sprinklers, Lawn Irrigation Supplies, Irrigation Parts, Landscape Lighting, Well Pumps, Wire, Backflow Prevention, Pond and Lake Fountains as well as Irrigation and Landscape Lighting Design. and Instruction.


Weatherproof Transformers

ETL Listed Logo Conforms to
UL 1838 &
1598 standards

Scroll down to learn about our line of Focus Industries Weatherproof Transformers;

or to order online from Do-It-Yourself Irrigation

WT - Weatherproof, NEMA 3R, ETL Listed

Single Circuit (12V) - 2 Terminals
Focus WT-12-100 100 Watt Transformer--------------$130.99-Qty.
Focus WT-12-200 200 Watt Transformer/2 Term.---$195.99-Qty.
Focus WT-12-300 300 Watt Transformer/2 Term.---$220.99-Qty.
Twin Circuit (2 x 12V) - 4 Terminals
Focus WT-212-200 200 Watt Trans. (2X100W)-------$188.99-Qty.
Focus WT-212-300 300 Watt Trans. (2X150W)-------$220.99-Qty.
Focus WT-212-600 600 Watt Trans. (2X300W)-------$415.99-Qty.

3 and 4 Circuit (12V) - 2 & 4 Terminals
Focus WT-312-900 900 Watt Trans. (3X300W)-------$542.99-Qty.
Focus WT-412-1200 1200 Watt Trans. (4X300W)---$675.99-Qty.



SPECIFICATIONS
• Heavy duty extruded aluminum housing (0.125") 6063-T6 with locking slide cover
• Powder coated black polyester (Optional finishes available)
• Rain-tight enclosure, above grade (Nema 3R)
• Long life-high temperature (130° C.) rated transformers
• Isolation/Insulation type. No contact between 120V and 12V windings
• Single phase, open core and coil
• 120V primary, 12V secondary 50/60 Hertz/cycle
• 6 foot (18/3) SJT-WA weatherproof grounded power cord (120V)
• On/Off control via rocker switch
• Extra heavy duty (75 Amp) terminal block easily handles extra sets of cable
MST/MLT - M 2000 Stainless Steel, NEMA 3R, ETL Listed
Focus M2000 Transformers with X-10            Focus M2000 Transformers with Timer



MST- Small Weatherproof Enclosure Series

Focus MST-12-200; 200 Watt Transformer (12.5VAC Output)
$226.99-Qty.

Focus MST-12-300; 300 Watt Transformer (12.5VAC Output)
$249.99-Qty.
Focus MST-12-300-MV; 300 Watt Transformer (12.5VAC, 13.5VAC, 14.5VAC Outputs)
$311.99-Qty.
Focus MST-212-600; 600 Watt Transformer (2x300W, 12.5VAC Output) $467.99-Qty.
Focus MST-212-600-MV; 600 Watt Transformer (2x300W, 2 x 12.5VAC, 13.5VAC, 14.5VAC Outputs)
$509.99-Qty.

MLT - Large Weatherproof Enclosure Series
Focus MLT-312-900; 900 Watt Transformer (3x300W-12.5VAC Output)
$592.99-Qty.
Focus MLT-312-900-MV1; 900 Watt Transformer, (1x300MV, 2 x 300W, 12.5VAC Output)
$634.99-Qty.
Focus MLT-312-900-MV2; 900 Watt Transformer. (2x300MV, 1 x 300W ,12.5VAC Output)
$665.99-Qty.
Focus MLT-312-900-MV3; 900 Watt Transformer, (3x300MV- 12.5VAC, 13.5VAC, 14.5VAC Outputs)
$696.99-Qty.
Focus MLT-412-1200-MV2; 1200 Watt Transformer. (2x300MV, 2 x 300 12.5VAC Outputs)
$811.99-Qty.
Focus MLT-412-1200-MV4; 1200 Watt Transformer, (4x300MV- 12.5VAC, 13.5VAC, 14.5VAC Outputs)
$873.99-Qty.
Focus MLT412-1200; 1200 Watt Transformer. (4x300W) 12.5VAC Outputs)
$748.99-Qty.


SPECIFICATIONS
• Heavy duty 18 gauge stainless steel enclosure with hinged locking door
• Rain-tight enclosure, above grade (Nema 3R)
• Long life, high temperature (130° C) 266° F Class "B" Rated Transformers
• Isolation/Insulation type, no contact between 120V and 12V windings, copper shield
• 1500 Volt isolation between all windings and ground
• 11 Gauge cold rolled steel "L" brackets for stable mounting
• Grade M19 electrical grade steel for superior electrical and magnetic properties
• Strip copper secondary windings for lower temperature rise
• Single phase, open core and coil
• EI laminated windings (linear output) vacuumed impregnated with black slate flour filled varnish for superior heat dissipation and noise reduction, class 180° C
• 120V primary, 12V secondary 50/60 Hertz/cycle
• 6 foot (18/3) SJT-WA weatherproof grounded power cord (120V)
• On/Off control via rocker switch
• Extra heavy duty (75 Amp) terminal block easily handles extra sets of cable
• Resetable circuit breaker for overload and short circuit protection
• U.L. 1838 listed, the standard for landscape lighting systems
• All units are supplied with knock outs for easy upgrading or adding of accessories
• MST Series has 3 x 1/2" knock outs for conduit feed of 12V cable
• MST Series has 6 x 1/2" knock outs for conduit feed of 12V cable
• 3/4" or 1" knock outs available - consult factory for price and availability
• Limited Lifetime Electrical Warranty - Components, 10-Year

OPTIONS

M2000 -T KIT
Focus -T KIT Integral Timer Kit (Field Installed)
$57.99-Qty.
Focus -T Integral Timer (Factory Installed)
$72.99-Qty.
M2000 -PC KIT
Focus -PC KIT Attached Photocell Kit (Field Installed)
$27.99-Qty.
Focus -PC Photocell (Factory Installed)
$36.99-Qty.
M2000 -RPC KIT
Focus -RPC KIT Remote Photocell Kit (Field Installed)
$55.99- Qty.
Focus -RPC Remote Photocell (15' Cord Included) (Factory Installed)
$116.99-Qty.
Focus RPC-Color Remote Photocell Color (Factory Installed)
$123.99-Qty.
M2000 -D KIT
Focus -D KIT Full Phase Dimmer Kit (0-12V) (Field Installed)
$83.99-Qty.
Focus -D Dimmer (Factory Installed)
$63.99-Qty.
M2000 -R KIT
Focus -R KIT 24VAC Relay Kit (Field Installed)
$44.99- Qty.
Focus -R 24V Relay / Irrigation Controller (Factory Installed)
$33.99-Qty.
M2000 -300 KIT
Focus -300 KIT 300W Power Kit (Field Installed)
$155.99-Qty.
M2000 -300MV KIT
Focus -300MV KIT 300W Multi-Voltage Power Kit (12.5, 13.5, 14.5VAC.) (Field Installed)
$187.99-Qty.
Focus -MV Multi-Voltage Output (12.5VAC, 13.5VAC, 14.5VAC) 300W+ Models (Factory Installed)
$42.99-Qty.
M2000 -600 KIT
Focus -600 KIT 600W Power Kit (Field Installed)
$210.99-Qty.
M2000 -600MV KIT
Focus -600MV KIT 600W Multi-Voltage Power Kit (12.5, 13.5, 14.5VAC) (Field Installed)
$301.99- Qty.

Focus -TR Timer/X10-Ready (module supplied by others)
$15.99-Qty.



DOWNLOADABLE LITERATURE

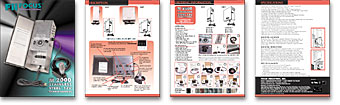

Download a printer-ready brochure of the M2000 Series.

Focus M2000 Series Transformers Brochure
Transformers, Stainless Steel
Overview Brochure of Stainless Steel Lighting Transformers, M2000 Series
(4-Page, Color, 320KB)

Timer-Ready and X-10 Integration
Transformers, Options
New Transformer Options, Timer-Ready or X-10 Integration
(1-Page, Color, 204KB)
