Hunter MP Rotator Nozzles

Fits all brands of spray bodies except Toro!

WATER CONSERVATION TOOL
• Multi-trajectory rotating streams provide unmatched uniformity
• Automatic matched precipitation even after arc & radius adjustment
• Low application rate reduces runoff on slopes & tight soils
PROVEN DURABILITY & RELIABILITY
• Rotator® Technology proven in demanding agricultural conditions since 1987
• One moving part
• Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
SIMPLE ADJUSTMENTS
• Easy arc adjustment
• Easy radius adjustment - up to 25%
• No need to change nozzle to maintain matched precipitation
• Removable inlet filter for easy cleaning
SIMPLIFY DESIGN & INSTALLATION
• The MP Strips, MP Corner, MP1000, MP2000 and MP3000 can be combined on the same zone

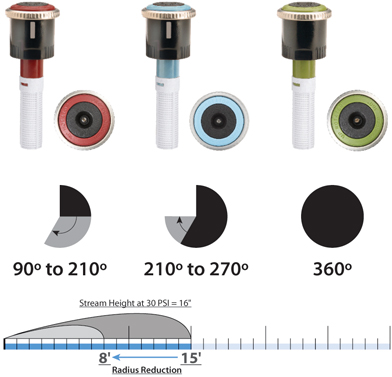

The MP1000 Rotator is a 8-15' (2.5-4.6 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.

*To achieve maximum radius reduction with any MP1000 model, use a 30 PSI (2 BAR) pressure regulating spray body.

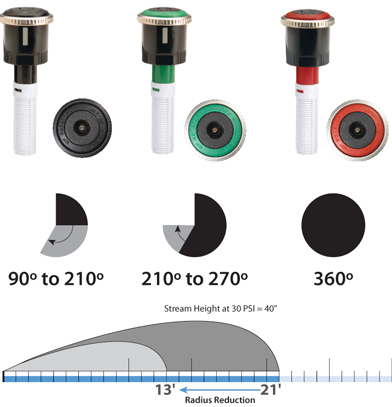

The MP2000 Rotator is a 13-21' (4-6.4 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.

*To achieve maximum radius reduction with any MP2000 model, use a 30 PSI (2 BAR) regulating spray body

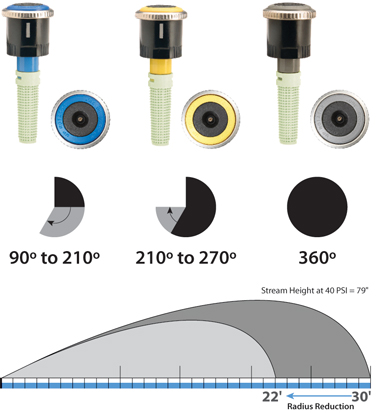

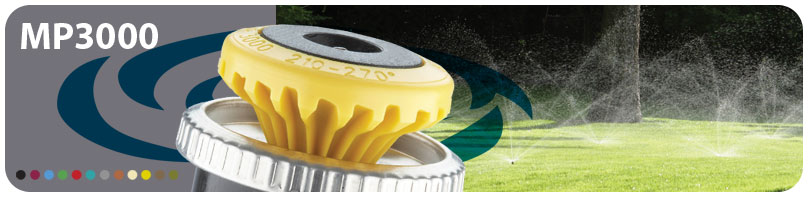

THE MP3000 Rotator is a 22-30' (6.7-9 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.

*When operating the MP3000 at full radius reduction, maintain a minimum pressure of 40 PSI to assure reliable operation

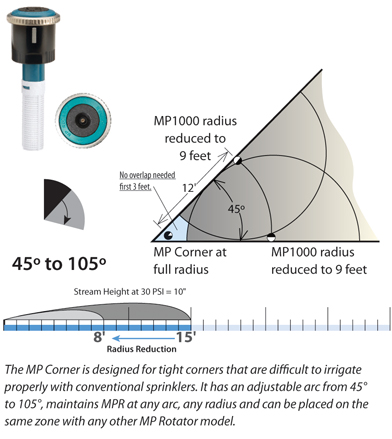

The MP Corner is an 8-15' (2.5-4.6 meter)sprinkler designed for tight corners that are difficult to irrigate properly with conventional sprinklers. It has an adjustable arc from 45° to 105°, maintains MPR at any arc, any radius and can be placed on the same zone with any other MP Rotator model.

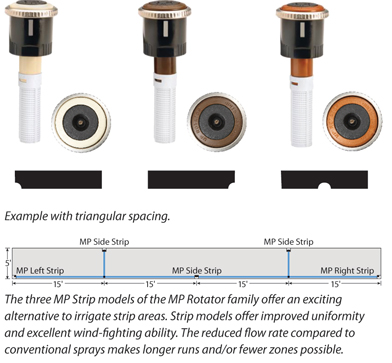

The MP Left & Right Strips irrigate an area 5’ x 15’ (1.5-4.6 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = .19 GPM (.72 LPM). When the radius is reduced the pattern is 4’ x 12’ (1.2-3.7 m). Flow rate at rectangular spacing = .14 GPM (.53 LPM).

The MP Side Strip irrigates a strip 5’ x 30’ (1.5-9.1 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = .38 GPM (1.44 LPM). When the radius is reduced the pattern is 4’ x 24’ (1.2-7.3 m). Flow rate at rectangular spacing = .27GPM (1.02 LPM)
