Rain Bird 3500 Gear Driven Rotors
 The
3500 Series Rotor is an easy to use short to mid-range 1/2"
gear-drive rotor, offering value and convenience for residential
applications. Utilizing a simple flat-bladed screwdriver, the
3500's arc adjustment is quick and easy.
This versatile rotor offers an attachable nozzle tree with six
superior performing Rain Curtain nozzles and the convenience
of reversing full and part circle operation (up to 360°)
in one unit. Plus, a nozzle removal feature and easily removable
filter screen makes maintenance a breeze.
All
of this, an affordable price and a 3-year factory warranty makes
the 3500 Series one rotor that is easy to use, easy to buy and
tough to beat!
Features and Benefits:
Top-adjust arc adjustment requiring only
a flat-blade screwdriver
Three year professional customer satisfaction policy.

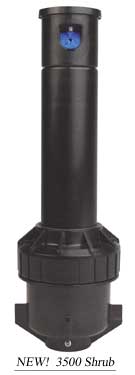

Shrub and 4" models available
40°- 360° Arc Part-Circle arc rotation and reversing Full-Circle
rotation in one
Attachable nozzle tree of six Rain Curtain™ nozzles
Radius adjustment screw allows up to 35% radius reduction without
changing nozzles
Quick Check Arc/Fast Forward
Dual action, positive stop wiper seal protects internals from
debris and assures positive pop-up and retraction
Self-adjusting stator does not require replacement when changing
nozzles
Water-lubricated gear-drive design for durable, reliable operation
Easily removable filter screen
Nozzle removal feature
Arc setting factory preset at 180° for installation convenience
Available in standard, and SAM (Seal-A-Matic
Check Valve)
Optional non-potable cover for easy identification of reclaimed
water
Rain Bird 5000 Gear
Driven Rotors
 The
5000 Series Rotor is a rugged mid-range gear-drive rotor, offering
durability, performance, and the convenience of arc adjustment
from the top, for residential and light commercial applications.
This versatile rotor offers a standard rubber cover and the
convenience of reversing full-and part-circle operation (up
to 360°) in one unit. And, with a TREE of Rain Curtain™
nozzles, the 5000 Series Rotor offers superior water distribution
for greener grass.
Features and Benefits:
The 5000 Series Rotor is available in shrub,
4", 6" and 12" models.
Top-adjust arc adjustment requiring only a flat-bladed screwdriver
Improved arc adjustment for smoother adjustability over the
life of the rotor
Five-year professional customer satisfaction policy.
Standard rubber cover
40°- 360° Arc Rotation for reversing Full-and Part-Circle
rotation in one. (A non-reversing full circle only unit is also
available)
Tree of nozzles including low angle (Angle of trajectory 10°)
and standard angle Rain Curtain™ nozzles (Angle of trajectory
25°) provide 23 to 40 feet (7 to 12,2m) distance of throw
Radius adjustment screw allows up to 25% radius reduction without
changing nozzles
Pressure activated multi-function wiper seal protects internals
from debris to assure positive pop-up and retraction
Water-lubricated gear-drive design for durable, reliable operation
Reinforced flow path for additional side load strength
Additional o-rings and seals for extra protection in "gritty"
water
Heavy-duty retract spring assures positive pop-down
Part Circle units (PC) are adjustable from
40° – 360°. Full Circle units (FC) are 360°
only.
Click here for Matched Precipitation
Rate Nozzles
Rain Bird 5000 Plus Gear Driven Rotors
 The
5000 Plus Series mid-range rotor compliments Rain Bird’s
already strong Top Adjust Rotor Family, by offering greater
durability, enhanced Rain Curtain™ Nozzles and the superiority
of Stream Control™ Technology. This innovative new rotor
has been designed with the needs of the customer in mind, while
still conforming to Rain Bird’s high quality standards.
Whether used in a residential or commercial
application, the 5000 Plus Series promises to deliver "The
Next Evolution in Rotor Performance".
Features
and Benefits:
The 5000 Plus Series Rotor is available in 4", 6",
12" and Shrub models.
Standard Green Rubber Cover for extra protection and easy identification
Heavy-duty cover assembly for extra durability in residential
or commercial applications
Stream Control™ Technology (SCT) with Flow Shut-off capabilities
Flow Shut-Off device (cone valve™) integrated into the
flow path of the rotor assures maximum stream efficiency
Flow Path to Nozzle Bore transition radius minimizes pressure
loss and assures peak nozzle performance
Smoothed Flow Path entrance of the rotor, increases the maximum
flow capabilities
Enhanced Rain Curtain™ Nozzles
Increased radius range with less flow per nozzle
New Micro-Ramps™ for Superior Close-in Watering
Nozzle Extraction Feature for easy rotor maintenance
Debris Sentry™ integrated into the turret of the rotor,
protects the internals from debris
Heavier-duty retract spring assures positive pop-down
Tree of nozzles including low angle (Angle of Trajectory 10º)
and standard angle Rain Curtain™
Nozzles (Angle of Trajectory 25º) provides 23 to 50 (7
to 15,2M) distance of throw
Top-adjust arc adjustment requiring only a flat-blade screwdriver
Five-year trade warranty
The same water-lubricated gear-drive mechanism as the 5000 Series
Rotor.
40°- 360° Arc Rotation and reversing full circle rotation
in one. (A non-reversing full circle only unit is also available)
Radius adjustment screw allows up to 25% radius reduction without
changing nozzles
Pressure-activated multi-function wiper seal protects internals
from debris and assures positive pop-up and retraction
Reinforced flow path for additional side load strength
Additional o-rings and seals for extra protection in "gritty"
water
Optional stainless steel riser helps deter vandalism on public
turf areas
Part Circle units (PC) are adjustable from
40° – 360°. Full Circle units (FC) are 360°
only.

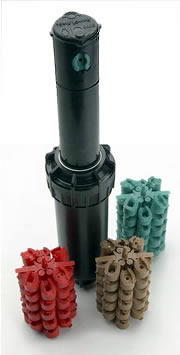

5000/5000 Plus MPR Nozzles
 Achieve Matched Precipitation Rate Between 25' and 35'
Rain Bird 5000/5000 Plus MPR Nozzles simplify both the design process
and the installation of rotors, because they reliably deliver matched
precipitation rates within and between rotor radii from 25' to 35'.
Without having to use fixed arc plates, designers and installers can
achieve MPR using either 5000 Series or 5000 Plus Series Rotors. Superior
flexibility in arc adjustment minimizes the risks of over- or under-watering.
Features
Three Nozzle trees of 25', 30', and 35'
Each tree contains a Q (90°), T (120°), H (180°), and F
(360°) Nozzle
No fixed arc plate required
Compatible with both the 5000 and 5000 Plus Rotor Series
Rain Curtain™ Technology provides:
- Large droplets for consistent performance
- Effective close-in watering
- Even distribution over the entire radius
Precipitation rate of 0.60 in/hr (15,2 mm/hr) reduces run-off and erosion
Color-coded by radius for easy identification
Nozzles are easy to insert and remove
Stackable Nozzle trees for convenient storage
|
Rain Bird 7005 Gear Driven Rotors
Full- or Part-Circle Rotor Pop-Up Sprinklers
Primary Applications:
The Rain Bird® 7005 Rotor is built rugged to withstand
the harsh conditions and vandalism present in commercial rotor
applications. It has been designed and tested to ensure the
high reliability demanded by the market today. With its extensive
customer identified features, it is versatile enough to fit
all applications.
Features and Benefits:
Five year trade warranty.
Memory Arc® returns the rotor to its original arc setting.
Non-strippable drive mechanism prevents damage from vandals.
Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick.
Optional stainless steel riser model helps deter vandalism on public turf areas.
Full and part circle operation in one unit to reduce inventory requirements.
Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from
50° to 330° part-circle, 360° non-reversing full-circle.
Left and right side trips adjustable for ease of installation without turning
the case and loosening the pipe connection.
Seal-A-Matic™ (SAM) check device/riser to help prevent low head drainage.
Water-lubricated gear drive.
Rain Curtain™ nozzles for optimal distribution and close-in watering resulting
in superior uniformity.
Nozzles are interchangeable from the front with no special tools.
Self-adjusting turbine stator allows nozzle replacement with no other adjustments
required.
Heavy duty retract spring ensures positive pop-down.
Standard black rubber cover
Optional Purple rubber cover for nonpotable applications
Models:
7005: 1" NPT female threaded inlet (plastic riser stem)
7005-SS: 1" NPT female threaded inlet (stainless steel covered riser stem)
Optional rubber collar (black)
Optional non-potable rubber collar (purple)
*Note: All models available with BSP threads.
Specifications:
Radius: 39 to 71 feet (11,9 to 21,7 m)
Pressure: 50 to 90 PSI (3,5 to 6,2 Bars)
Flow: 3.8 to 22.2 GPM (0,86 to 5,04 m3/h; 0,24 to 1,40 l/s)
1" (26/34) female NPT or BSP threaded inlet
SAM check device holds up to 10 feet (3,1 m) of elevation change
Rain Curtain nozzles: 04-black; 06-light blue; 08-dark green; 10-gray; 12-beige;
14-light green; 16-dark brown; 18-dark blue
Nozzle outlet trajectory is 25°
Dimensions:
Exposed diameter: 1 7/8" (4,8 cm)
Overall diameter: 3 1/8" (7,9 cm)
Overall height: 10 1/8" (25,7 cm)
Pop-up height: 5" (12,7 cm)
Note: Pop-up height is measured from cover to center of primary nozzle port.
Overall body height is measured popped down.

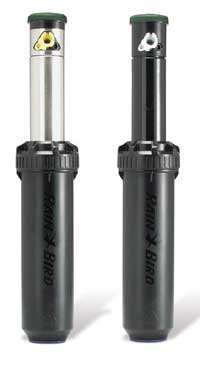

Rain Bird 8005 Gear
Driven Rotors
 Bigger, Better, Built to Last
The Rain Bird® 8005 Rotor is built rugged to withstand
the harsh conditions and vandalism present in commercial rotor
applications. It has been designed and tested to ensure the
high reliability demanded by the market today. Its extensive
customer identified features and 80 foot radius make it ideal
for sportsfields, parks and other large turf applications.
Features and Benefits:
Five year trade warranty.
Memory Arc® returns the rotor to its original arc setting.
Non-strippable drive mechanism prevents damage from vandals.
Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick.
Optional stainless steel riser model helps deter vandalism on public turf areas.
Full and part circle operation in one unit to reduce inventory requirements.
Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from
50° to 330° part-circle, 360° non-reversing full-circle.
Left and right side trips adjustable for ease of installation without turning
the case and loosening the pipe connection.
Seal-A-Matic™ (SAM) check device/riser to help prevent low head drainage.
Water-lubricated gear drive.
Rain Curtain™ nozzles for optimal distribution and close-in watering resulting
in superior uniformity.
Nozzles are interchangeable from the front with no special tools.
Self-adjusting turbine stator allows nozzle replacement with no other adjustments
required.
Heavy duty retract spring ensures positive pop-down.
Standard rubber cap. (Green)
Optional Purple rubber cover for nonpotable applications
Models:
8005: 1" NPT female threaded inlet (plastic riser stem).
8005-SS: 1" NPT female threaded inlet (stainless steel covered riser stem).
*All models available with BSP threads
Specifications:
Radius: 57 to 81 feet (17,4 to 24,7 m)
Pressure: 50 to 100 psi (3,5 to 6,9 Bars)
Flow: 11.1 to 36.3 GPM (2,54 to 8,24 m3/h; 0,70 to 2,29 l/s)
1" (26/34) female NPT or BSP threaded inle
t
SAM check device holds up to 10 feet (3,1 m) of head
Rain Curtain nozzles: 12-beige; 14-light green; 16-dark brown; 18-dark blue;
20-red; 22-yellow; 24-orange; 26-white
Nozzle outlet trajectory is 25°
Dimensions:
Exposed diameter: 1 7/8" (4,8 cm)
Overall diameter: 3 1/8" (7,9 cm)
Overall height: 10 1/8" (25,7 cm)
Pop-up height: 5" (12,7 cm)
Note: Pop-up height is measured from cover to center of primary nozzle port.
Overall body height is measured popped down

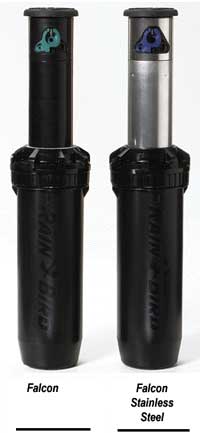

Rain Bird Falcon™
Gear Driven Rotors
 Closed-case
commercial grade rotor ideal for large turf areas such as parks,
athletic fields, cemeteries, schools, and other commercial sites.
Features and Benefits:
Stainless steel riser option helps deter
vandalism on public turf areas.
Five-year professional customer satisfaction policy.
Easy arc adjustment (part-circle model) through top of rotor
from 40°° to 360°. No special tools required.
Water-lubricated gear drive for reliable, durable rotation.
Heavy-duty, stainless steel retract spring ensures positive
pop-down.
Standard black rubber cover or optional purple rubber cover
for non-potable water.
Removable Seal-A-Matic™ (SAM) check device prevents puddling
and erosion caused by low-head drainage.
Eight color-coded Rain Curtain™ nozzles offer design flexibility.
Patented Rain Curtain™ nozzles have three ports for optimal
long-range, mid-range, and close-in watering, for green grass
even in the heat of summer.
Nozzles are interchangeable from the front with no special tools.
Self-adjusting stator does not require replacement when changing
nozzles.
Radius adjustment screw allows radius reduction up to 25% without
changing nozzles.
Small 2" (5,1 cm) exposed diameter reduces possibility
of injury in play areas.
Patented, pressure-activated wiper seal and tapered riser stem
on both plastic and stainless steel models protect internals
from debris to ensure positive pop-up and retraction.
Stainless steel trip gears ensure long-term durability.
New model with faster rotation speed completes full rotation
in approximately one minute for quick wet-down on clay tennis
courts and sports turf infield areas.
New freeze protection feature safeguards rotors from damage
during repeated freeze/thaw cycles even in harsh winter climates
(does not eliminate the need for system winterization).
Falcon rotors can be ordered from the factory with nozzles pre-installed
in case quantities as a special order.
|
