Spray Head Nozzles

These Nozzles fit all Hunter, Rain Bird, Nelson , Irritrol and Weathermatic.

But they do not Fit Toro!

Irrigation Spray Nozzles
These nozzles are designed to work with Hunter, Irritrol, Nelson, Rain Bird and Weathermatic,
but do not fit Toro products.


Plastic Nozzles are listed first, scroll down for Brass Nozzles

  Nozzle, 090° 1/4 Circle--------- $1.49-Qty
  Nozzle, 120° 1/3 Circle-------- $1.49-Qty
  Nozzle, 180° 1/2 Circle-------- $1.49-Qty
  Nozzle, 240° 2/3 Circle--------- $1.49-Qty
  Nozzle, 270° 3/4 Circle--------- $1.49-Qty
  Nozzle, 360° Full Circle ------- $1.49-Qty
Nozzle, Variable Arc------------ $1.59-Qty
  Nozzle, Center Strip (15CST)----------------------------$1.49-Qty
  Nozzle, End Strip (15EST)--------------------------------$1.49-Qty
  Nozzle, Side Strip (15SST)-------------------------------$1.49-Qty

Hunter MP Rotator Nozzles

Fits all brands of spray bodies except Toro!

WATER CONSERVATION TOOL
• Multi-trajectory rotating streams provide unmatched uniformity
• Automatic matched precipitation even after arc & radius adjustment
• Low application rate reduces runoff on slopes & tight soils
PROVEN DURABILITY & RELIABILITY
• Rotator® Technology proven in demanding agricultural conditions since 1987
• One moving part
• Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
SIMPLE ADJUSTMENTS
• Easy arc adjustment
• Easy radius adjustment - up to 25%
• No need to change nozzle to maintain matched precipitation
• Removable inlet filter for easy cleaning
SIMPLIFY DESIGN & INSTALLATION
• The MP Strips, MP Corner, MP1000, MP2000 and MP3000 can be combined on the same zone

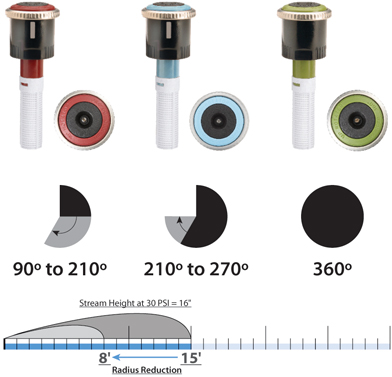

The MP1000 Rotator is a 8-15' (2.5-4.6 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.

*To achieve maximum radius reduction with any MP1000 model, use a 30 PSI (2 BAR) pressure regulating spray body.


Hunter MP Rotator MP1000 90-210 ---------------------- $6.24-- Quantity

The Hunter MP Rotator 210-270 is not available

Hunter MP Rotator MP1000 360 --------------------------- $5.99-- Quantity

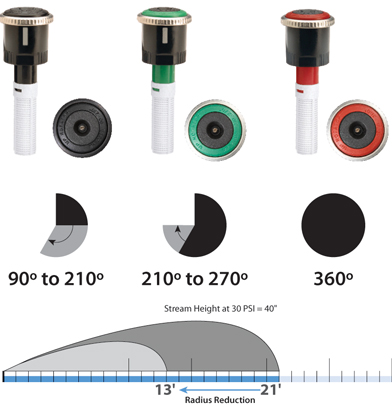

The MP2000 Rotator is a 13-21' (4-6.4 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.

*To achieve maximum radius reduction with any MP2000 model, use a 30 PSI (2 BAR) regulating spray body

Hunter MP Rotator MP2000 90-210 ---------------------- $6.24-- Quantity
Hunter MP Rotator MP2000 210-270 --------------------- $6.24-- Quantity
Hunter MP Rotator MP2000 360 --------------------------- $6.24-- Quantity

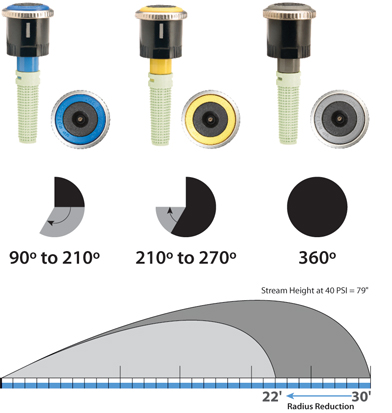

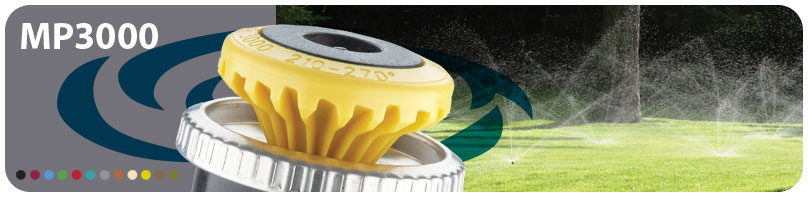

THE MP3000 Rotator is a 22-30' (6.7-9 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.

*When operating the MP3000 at full radius reduction, maintain a minimum pressure of 40 PSI to assure reliable operation



Hunter MP Rotator MP3000 90-210 ---------------------- $6.24-- Quantity
Hunter MP Rotator MP3000 210-270 -------------------- $6.24-- Quantity
Hunter MP Rotator MP3000 360 --------------------------- $6.24-- Quantity

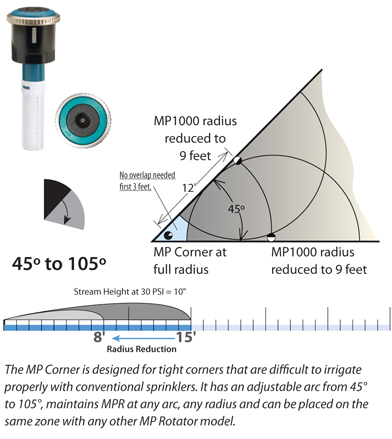

The MP Corner is an 8-15' (2.5-4.6 meter)sprinkler designed for tight corners that are difficult to irrigate properly with conventional sprinklers. It has an adjustable arc from 45° to 105°, maintains MPR at any arc, any radius and can be placed on the same zone with any other MP Rotator model.



Hunter MP Rotator MP-Corner ----------------------------- $6.24-- Quantity

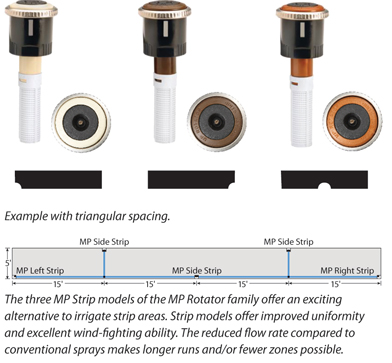

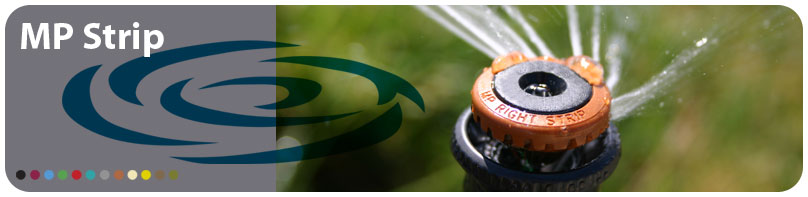

The MP Left & Right Strips irrigate an area 5’ x 15’ (1.5-4.6 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = .19 GPM (.72 LPM). When the radius is reduced the pattern is 4’ x 12’ (1.2-3.7 m). Flow rate at rectangular spacing = .14 GPM (.53 LPM).

The MP Side Strip irrigates a strip 5’ x 30’ (1.5-9.1 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = .38 GPM (1.44 LPM). When the radius is reduced the pattern is 4’ x 24’ (1.2-7.3 m). Flow rate at rectangular spacing = .27GPM (1.02 LPM)



Hunter MP Rotator MP Side Strip ------------------------- $6.24-- Quantity
Hunter MP Rotator MP Left Side Strip ------------------$6.24-- Quantity
Hunter MP Rotator MP Right Side Strip ---------------- $6.24-- Quantity


Rotary Nozzles by Rain Bird for all brands except Toro

Rotary Nozzles provide unsurpassed design flexibility and highly efficient water

distribution from 13 to 24 feet. The newest addition to Rain Bird’s line of water-efficient products, Rotary Nozzles help reduce water waste and make it easier to design systems. The Rotary Nozzle is a truly remarkable innovation with a low precipitation rate, highly uniform distribution, and increased radius range, all in a nozzle which fits on a Rain Bird spray head.

Fewer zones, faster installs – system complexity and costs are reduced because are reduced because more heads can be installed per zone. Rotary Nozzles can also be zoned with Rain Bird 5000/5000 Plus MPR Rotor Nozzles.
Efficient water distribution – multiple rotating streams deliver close-in watering and even coverage throughout the radius range. The low precipitation rate significantly reduces wasteful run-off and erosion
Ultimate retrofit solution – low flow rate and an expanded radius of throw solve existing spray zone inefficiencies caused by diminished pressure or stretched spacing
.

See It In Action!
Click the Picture to the left to view
Rain Bird's Rotary Nozzle Interactive Feature Tour.

(Then click the back button to return to this site)

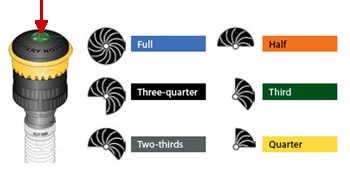

Rain Bird Rotary Nozzles
Rain Bird Rotory 13'-17' Quarter-Circle Nozzle ----------------- $3.99-- Qty
Rain Bird Rotory 13'-17' Third-Circle Nozzle --------------------- $3.99--Qty
Rain Bird Rotory 13'-17' Half-Circle Nozzle ----------------------- $3.99--Qty
Rain Bird Rotory 13'-17' Two Thirds-Circle Nozzle ----------- $3.99-- Qty
Rain Bird Rotory 13'-17' Three Quarters-Circle Nozzle ------- $3.99--Qty
Rain Bird Rotory 13'-17' Full-Circle Nozzle ------------------------ $3.99--Qty
Rain Bird Rotory 17'-24' Quarter-Circle Nozzle ------------------ $3.99--Qty
Rain Bird Rotory 17'-24" Third-Circle Nozzle --------------------- $3.99--Qty
Rain Bird Rotory 17'-24" Half-Circle Nozzle ----------------------- $3.99--Qty
Rain Bird Rotory 17'-24" Two Thirds-Circle Nozzle ----------- $3.99--Qty
Rain Bird Rotory 17'-24" Three Quarter-Circle Nozzle -------$3.99--Qty
Rain Bird Rotory 17'-24" Full-Circle Nozzle ----------------------- $3.99--Qty



Brass Sprinkler Nozzles

  Nozzle, 090° Brass 1/4 Circle- $4.50-Qty
  Nozzle, 180° Brass 1/2 Circle- $4.50-Qty
  Nozzle, 270° Brass 3/4 Circle- $4.50-Qty
   Nozzle, Brass Full Circle------- $4.50-Qty
