Irritrol 205 Series Irrigation Valves
Irritrol® Systems’ popular 205
Series electric globe valves offer debris-tolerant operation
and a high-flow, low-friction-loss design for optimum performance
in potable and dirty water applications.
Irritrol 200B Series Irrigation Valves
These durable, heavy-duty commercial valves offer a selection
of key features designed to provide reliable, cost-effective
performance under the most challenging conditions.
Flow range: 5-120 GPM
Pressure range: 20-150 psi
Irritrol 2400/2600 Series Irrigation Valves
Designed primarily for residential use, these durable electric
globe and angle valves offer solid construction, reliable performance
and convenient operation to accommodate the specific needs of
homeowners.
Irritrol 2500 Series Irrigation Valves
Designed primarily for light commercial and residential use,
the next-generation 2500 Series valves offer a complete package
of performance-enhancing features including a full stainless
steel metering system and internal manual bleed. Built on the
highly popular 205 Series, these rugged, debris-tolerant valves
also feature a new self-aligning bonnet, captured screws and
a pressure-activated sealing system.
Available in female NPT or slip configuration (no male pipe
adapter required)
Flow range: 0.25-30 GPM
Pressure range: 10-150 psi

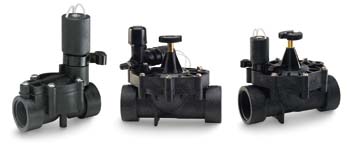

Irritrol 700 Series (UltraFlow®)
Irrigation Valves
A straight-through flow path for minimum pressure loss and a
host of standard and optional operating features make these
heavy-duty electric globe valves ideal for a variety of challenging
commercial and light commercial applications.
Flow range: .10-180 GPM
Pressure range: 10-150 psi
Irritrol 2700 Series Electric Irrigation
Valves
These highly popular next-generation anti-siphon valves, with
built-in atmospheric vacuum breakers, offer the ultimate in
performance, reliability and ease-of-use for a wide variety
of residential applications.
Flow range: 5-30 GPM
Pressure range: 10-150 psi
Irritrol R 811 -24 VAC Irrigation Solenoid
 Hardie®,
Richdel® and Irritrol® Systems universal encapsulated
solenoid
Captive hex plunger feature
24VAC, .40 amp inrush, .20 amp holding
|
